A More Complete Model of
Relations and Their Implementation

Part I: Relations as Object Types


Conrad Bock
James J. Odell


Reprinted from
Journal Of Object-Oriented Programming Vol 10, No 3, June 1997
Copyright © 1997 SIG Publications, Inc, New York, NY




Introduction

All modeling languages address relations and their implementationÑbut to varying degrees of completeness and accuracy. This is the first of two articles on more complete models of relations and their implementation. In this one, we will discuss how cardinality constraints can resolve ambiguities in existing methods. Included are intuitive examples and a precise, nonmathematical technique to develop an analysis model covering commonly missed information. Then, we will describe a technique for modeling relations that is fully recursive, but avoids infinite regress. We will then conclude with various ways that relations can be specialized.


Relations as Object Types

A loose definition everyone can agree on is that relations connect objects. For example, marriage can be modeled as a relation between two people. Or, gift-giving can be modeled as a relation between three objects: the giver, the receiver, and the gift. A particular instance of a relation, such as a single marriage between two particular people, is called a tuple (or a link in current UML terminology). Tuples can change over time. For example, people may divorce and remarry even if the marriage relation itself does not change.

In Object-Oriented Information Engineering (OOIE), relations may be modeled as object types. The tuples of a relation are modeled as the instances of the relation. In other words, they may be treated as objects in their own right. How relations can be specialized, that is, subtyped, will be discussed later in this article.


Cardinality Constraints

There are two types of cardinality constraints (or multiplicity in UML) for a relation:

Most modeling languages combine these cardinality constraints into one, losing information in the process. For example, Fig. 1 depicts a purchasing relation model in UML notation.

Figure 1. A relation model for purchasing.


The cardinality constraints indicate that a person may buy zero or more products that are bought by zero or more people. This is ambiguous, because the designer can choose from at least these following interpretations:

Design 1: People may only make one purchase but may buy as many products as they like with that one purchase.
Design 2: People may make as many purchases as they like, but each purchase may only be for a single product.
Design 3: People may make as many purchases as they like and buy as many products as they like for each purchase.

Without access to the customer or analyst, the designer can only guess which of the above should be implemented. There are even more designs. They include those that allow a purchase to be recorded with no product or person or that allow more than one person to make a single purchase. Both are consistent with the incomplete analysis presented so far. An analysis model that specifies single- and multiple-tuple cardinality removes ambiguity for the designer:

Single-Tuple Cardinality Multiple-Tuple Cardinality
How many objects are required or allowed
in a single tuple of the relation?
How many tuples can or must an object
participate in under the relation?



Design 1: PERSON: exactly one
PRODUCT: one or more
PERSON: at most once
PRODUCT: any number



Design 2: PERSON: exactly one
PRODUCT: exactly one
PERSON: any number
PRODUCT: any number



Design 3: PERSON: exactly one
PRODUCT: one or more
PERSON: any number
PRODUCT: any number

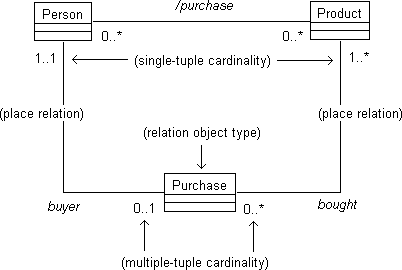

Figure 2. A design that allows one purchase of many products.


Specifying the single- and multiple-cardinality constraints eliminates ambiguity, ensuring a more reliable transition from analysis to design. OOIE models cardinality constraints using an object type for the relation. Figure 2 expresses Design 1 which allows one purchase of many products.

The object type PURCHASE models the relation. The additional relations between PURCHASE and PERSON and between PURCHASE and PRODUCT are called place relations. They give information about each participant in the relation, namely its type and cardinality constraints. From the various designs, it is clear that the place relations give more information than the original relation between PERSON and PRODUCT. (The slash notation on the original relation indicates that it is derived from the information on the place relations.)

Figure 3. A design that allows many purchases of one product each.


The cardinality constraints on the original relation can be calculated by multiplying those on the place relations [Wiegert, 1997]. For example, the zero-to-many cardinality on the right side of the original relation is the result of multiplying the zero-to-one, multiple-tuple cardinality near PURCHASE by the one-to-many, single-tuple cardinality near PRODUCT. Figure 3 expresses Design 2 which allows many purchases of one product each. Figure 4 expresses Design 3 which allows many purchases of many products. (The dotted line is UML notation indicating that PURCHASE is an object type modeling the purchase relation.)

Figure 4. A design that allows many purchases of many products.


The reader might draw models for the designs which are not presented here. These include those that allow a purchase to be recorded with no product or no person and those that allow more than one person to make a single purchase.

Even if tools do not provide full relation modeling as in OOIE, they should ask users for single- and multiple-cardinality constraints to eliminate ambiguity at design time. If the user does not specify the cardinality constraints, we recommend that tools use these defaults:

Notice that the above defaults do not provide the most common interpretation for our purchasing example in Fig. 4, namely, many purchases of many products. For this reason, tools should make users aware when defaults are being assumed and allow them to be changed later.

Figure 5. The Marriage relation as its own object type.


Relations on Relations

Another reason for using object types to model relations is that relations may have features in their own right. For example, Fig. 5 expresses how the Marriage relation looks when it has its own object type, with a relation to CITY HALL where the marriage is certified.

Place relations can also have features. Figure 6 expresses the purchasing example again, modeling the place relation between PURCHASE and PRODUCT as a line item with a quantity.

Figure 6. Modeling the place relation to PRODUCT as a line item with a quantity.

One risk of modeling place relations as objects is the danger of creating an infinitely recursive structure. This infinite regression is addressed in OOIE by using a simplified object called a place to store information about a place relation when it has no user-defined features. A place records only the types of participants in the relation and its single- and multiple-cardinality constraints. The implementation of a place intentionally avoids full object types and relations for this information, so that the recursion "bottoms out". For example, the PURCHASE relation has two place records:

Place 1 Place 2
Participating Type: PERSON Participating Type: PRODUCT
Single-tuple: exactly one Single-tuple: one or more
Multiple-tuple: any number Multiple-tuple: any number


If the user decides to define specific features for a place relation, places are then transformed into full object types. In the product example above, places are first used for the two-place relations from PURCHASE. When the user wants to add a QUANTITY relation to the place relation between PURCHASE and PRODUCT, its places are then transformed into the full object type PURCHASE LINE ITEM. To prevent infinite recursion, places are then used for the place relations from PURCHASE LINE ITEM. This process can be repeated to whatever depth the user requires.


Specialized Relations

As with all object types, relations can be specialized, that is, subtyped. Specialization means to modify the subtype consistently with the supertype but in such a way that fewer objects are normally instances of the subtype. For example, if the ANIMAL object type is specialized into the DOG object type, then dogs must have the same characteristics as animals plus some additional characteristics or constraints. Since some animals will not have the additional characteristics of dogs or satisfy the additional constraints, there will be fewer dogs than animals.

The most common way to specialize a relation is to restrict the types that participate in the relation. For example, Fig. 7 expresses a specialization of the driving relation between people and cars.

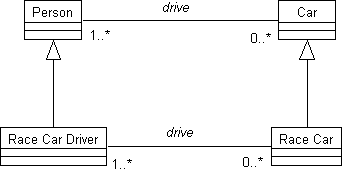

Figure 7. The specialization of the driving relation between people and cars.

The lower relation restricts race cars to be driven by race-car drivers. (If we didn't trust race-car drivers to drive regular cars, we could restrict them to driving only race cars.) Specialized relations can restrict any or all of the participating types.

A confusing aspect of specialized relations is that they sometimes have the same name as their generalizations. The example above still calls the relation DRIVE when it involves a race car, even though this implies a very different kind of driving. It also has one of its participating types restricted to race-car drivers. However, nothing stops us from naming the specialized relation differently. In fact, some techniques for specializing relations always involve a new name for the relation. For example, we could specialize MARRIAGE by restricting its features, such as requiring that the license be issued in California. A specialization of this sort could then be called CALIFORNIA-MARRIAGEs.

Another way to specialize a relation without renaming it is to restrict its cardinalities. For example, a relation can exist between restaurants and the customers being served at any particular time. While the number of customers being served need not be restricted in general, it may be restricted to 20 for small restaurants (as expressed in Fig. 8).

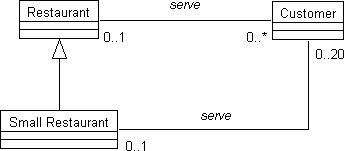

Figure 8. Restricting the number of customers in small restaurants to 20.

The general rule is that a specialized relation gets a new name if it has new features or if inherited ones are modified. The specialized relation can retain the name of the generalization if it restricts only the information that defines the relation, such as its participating types or its cardinality constraints.


Conclusion

We have shown that the cardinality information expressed in most modeling languages is ambiguous. Our more complete model resolves this by distinguishing the number of objects that can be connected in one instance of a relation from the number of relation instances in which an object can participate. The model centers on treating relations as object types and relating them to their participating types. We gave a simple technique for preventing the infinite regress associated with relations between relations. Finally, we discussed various ways that relation types may be specialized and indicated when the name of a relation subtype can be the same as its supertype.


References

Wiegert, Oliver. "Semantics of Relations"; SAP internal paper, January, 1997.


Acknowlegement

We thank the CDIF committee for discussing their data model with us. Our multiple- and single-tuple cardinalities are equivalent to their "inside" and "outside" cardinalities.
